特别为传送带或传送器设计, 这个系列同样适用于广泛多样的工业领域
S 系列轴装齿轮减速器提供铸铁型号，可选规格 050 至 125，减速比范围宽，确保在所有操作条件下具有Z大效率。
摩铎利 S 系列推出了两个新尺寸机型 - 140 和 150，可拓宽高功率螺旋伞齿轮减速机的安装范围。

提供认证 (高达大小 125)：ATEX 2GD/3GD

质量保证：自交付之日起两年。

产品特性

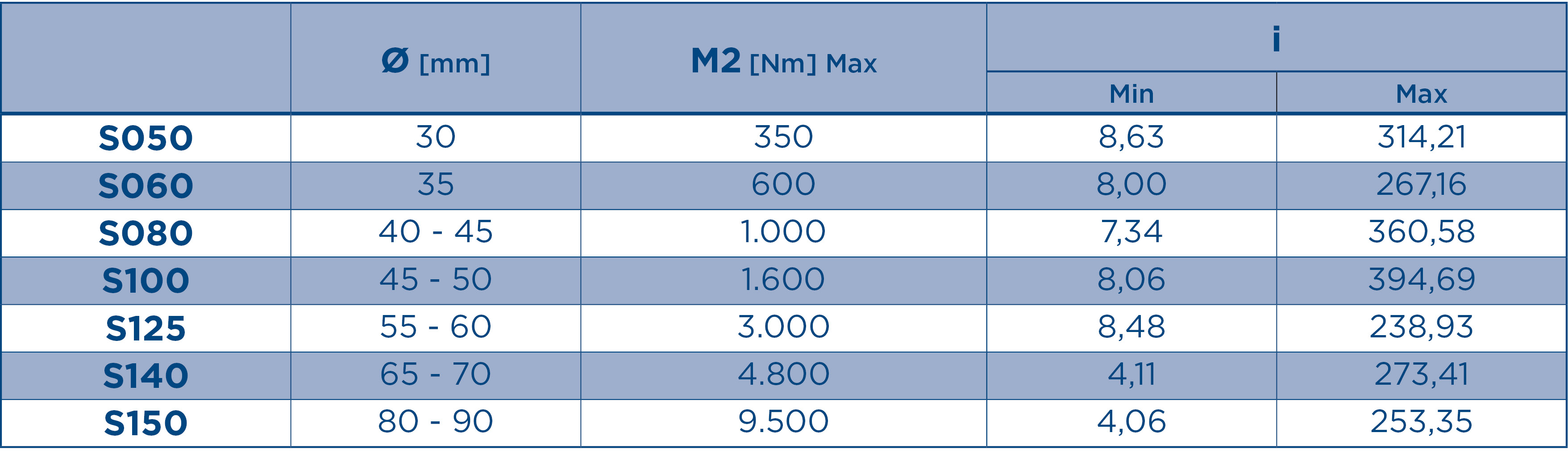

型号: 050-060-080-100-125-140-150

· Power from 0,12 kW up to 45 kW with three phase 4 pole motors
· Reduction ratios between 4,06 and 394,69
· Torque max 9.500 Nm
· Admissible radial loads max 30.000 N

型号: 050-060-080-100-125

· Universal casing
· Versions: S... C  Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S...  L Foot-flange mounting / Shrink disc shaft
· Gearing with 2 and 3 reduction stages
· Modularity
· Gears hardened and tempered with shaved or ground profile
· Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
· Excellent mechanical strength
· Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
· Painted with RAL 5010  blue  epoxy-polyester powder

型号: 140-150

· Universal casing
· Versions:  S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft
· Gearing with 2 and 3 reduction stages
· Gears hardened and tempered with ground profile
· Cases in EN-GJL-200 grey cast iron
· Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
· Gearboxes supplied without lubricant
· Painted with RAL 5010  blue  epoxy-polyester powder
